High Performance Full Vector General Purpose Inverter
Product Overview
G300 series inverter is a high quality inverter optimized and developed by Akewell on the basis of general inverter products, combined with the precise needs of customers.
G300 series frequency converter is a high-performance vector type frequency converter optimized and developed by Akewell based on the general frequency converter products, combined with the accurate needs of customers.
G300 series inverter is a high performance vector type inverter optimized and developed on the basis of general-purpose inverter products and customers' precise demands, which is the first and foremost product for high-performance adjustment and control of general machinery.
G300 series frequency converter is not only suitable for fan and pump machinery, but also for heavy load, fast response and high speed control.
G300 series inverter is not only suitable for fan and pump machinery, but also has excellent performance in heavy load and fast response occasions.
Selection Precautions
The selected power supply voltage must be the same as the input voltage specification of the inverter.
Application Fields
Widely used in CNC machine tools, machining centers, large-scale complete sets of equipment, plastic machinery, textile, printing, copper, printing and dyeing, packaging, woodworking machines and so on.
Woodworking machines, etc.
Environment
The inverter is not easy to be installed in the place of vibration, and the vibration acceleration is mostly limited to below 0.3~0.6G;
●The surrounding temperature of the installation place should not exceed (-10℃ to +40℃); ●Relative air humidity ≤0.5℃; ●Relative air temperature ≤0.5℃.
●Relative air humidity ≤ 90%, no condensation, avoid the inverter in the direct sun;
●The inverter should be installed indoors, not exposed to direct sunlight, free from dust, corrosive, flammable gases, oil mist, water vapor, dripping water or salt.
Product Key Features
| Item | Item Description |
| Input range | 3AC 380 to 480V |
| Power supply system | Three-phase, three-wire IT system |
| Rated power | 200kW |
| Line frequency | 50Hz |
| Output frequency (adjustable range) | 0-50Hz |
| Fixed frequency | 15 fixed frequencies plus 1 base frequency, programmable |
| User terminal block | Digital inputs/outputs, analog inputs/outputs |
| Communication interface | RS485 communication interface as standard |
| Braking mode | Braking mode as system partner |
| Protection class | IP54 |
| Cooling mode | Internal fan |
| Noise level | ≤ 72dR(A) . At 50Hz power frequency |

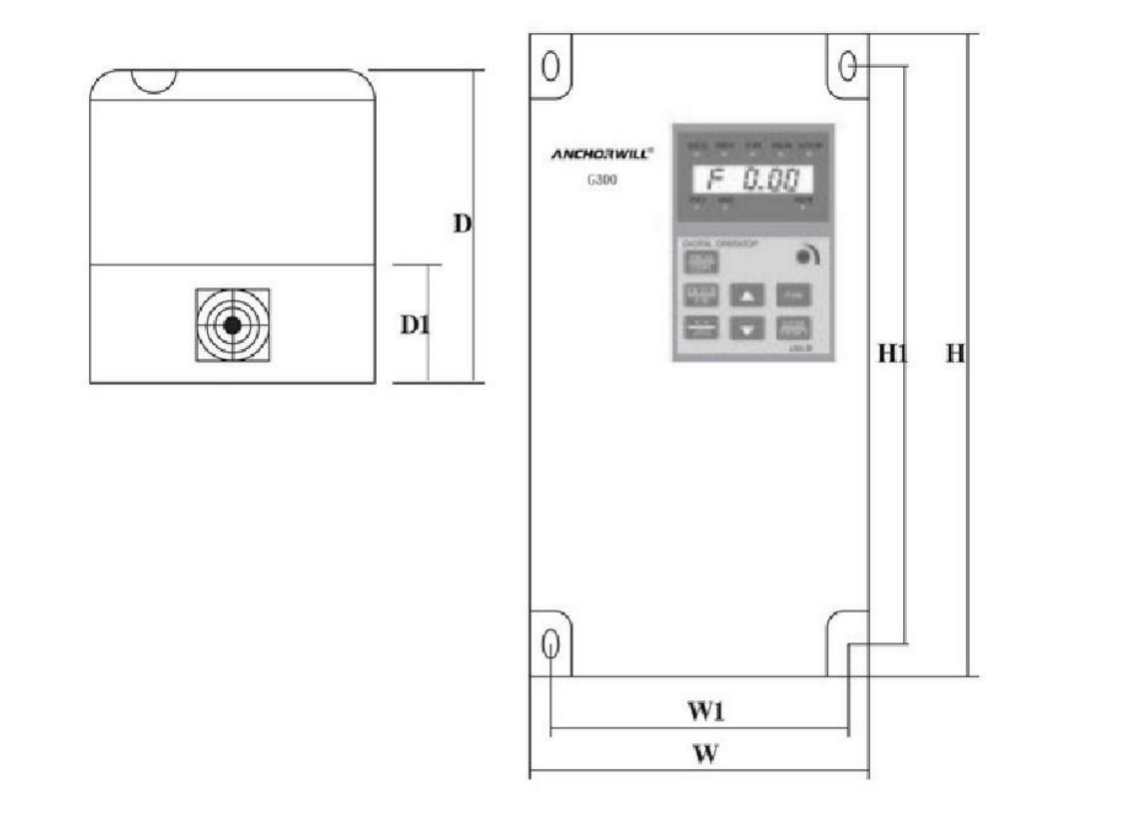

Mounting Dimensions
| Airframe type | | D1 | | WI | | H] |
| M-SK-01 | 160 | 112 | 125 | 113 | 177 | 162 |
| M-SK-02 | 175 | 110 | 150 | 135 | 221 | 210 |
Operating environment
The altitude of the installation place is not more than 1000m above sea level, if it is more than 1000m above sea level, it should be used with reduced capacity;
The ambient temperature is -10～40℃, above 40℃, it should be used at reduced capacity, and the current should be reduced by 2% for every 1℃ above.
Ambient humidity ≤95%RH, no water condensation;
●Indoors without corrosive gas that destroys metals and insulating materials;
●No direct sunlight, no dust, flammable gas, oil mist, dripping water or salt.
